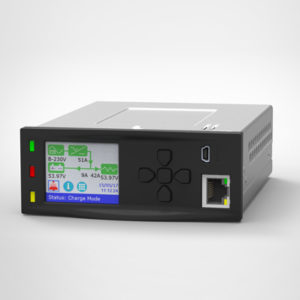

MHA Infotech SDN BHDM1000-X
Key Technical Specification
- Operating voltage: 20V – 70V
- Power consumption: 5W (Nominal)
- Dimensions (WxDxH):
- 130mm x 145mm x 43mm
- Operating temperature range:
- -20°C to +60°C
- Supports small to large systems by connecting upto 100 rectifiers.
- Dynamic battery current control and temperature compensation.
- Upto 6 voltage, 7 current channels and 3 temperature channels with slave interface unit.
- Up to 5 LVD controls.
- Up to 40 potential free inputs / outputs.
- Support for DG control and renewable hybrid system.
- 2 x isolated system CAN bus.
- 2 x isolated RS485 – configurable for multiple slave devices and functions.
- 1 x RS 232 – For GSM / GPRS / 3G modem.
- 10/100 Mbps Ethernet interface – MDI / MDI-X, Static / DHCP IP, IPv4 / IPv6, HTTP, SNMP V2c / V3, SNTP and FTP.
- USB 2.0 interface – supports mass storage. Host mode and device mode for programming.
- Modbus RTU interface for SCADA system.
Introduction
Exicom's M1000-X controller platform covers all control and monitoring needs of small to large sized DC power systems with amazingly simple and easy user interface. Whether it is remote monitoring capabilities, or integrated functions to do energy management via control of site infrastructure or support for advance battery types; M1000 is on the most advanced controllers available in market today.
Key Features
High resolution color display and easy to use navigation
Ethernet for local or remote monitoring via web browser and optional modem
Supports 10/100 Mbps Ethernet interface, web server, IPv4 / IPv6, DHCP and SNMP Agent
Site infrastructure control and renewable hybrid system support
Li-ion battery support and advanced battery management & testing methods
User configurable performance logging, event logs and energy logs
Configurable alarm grouping, PFC mapping and alarms names
USB interface for configuration file update and log download
