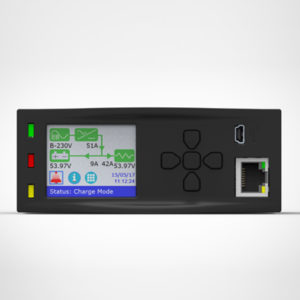

MHA Infotech SDN BHDM1000-H
Key Technical Specification
- Operating voltage: 20V – 70V
- Power consumption: 5W (Nominal)
- Dimensions (WxDxH):
- 130mm x 145mm x 43mm
- Operating temperature range:
- -20°C to +60°C
- Supports small to large systems by connecting upto 60 rectifiers.
- Dynamic battery current control and temperature compensation.
- Upto 3 voltage, 2 current channels and 1 temperature channel.
- Up to 2 LVD Controls – one each for battery and load.
- Up to 8 potential free inputs / outputs using external unit.
- 1 x isolated system CAN bus.
- 1 x isolated RS485.
- 1 x RS 232 – For GSM / GPRS / 3G modem.
- 10/100 Mbps Ethernet interface – MDI / MDI-X, Static / DHCP IP, IPv4 / IPv6, HTTP, SNMP V2c / V3, SNTP and FTP.
- USB 2.0 interface – supports mass storage. Host mode and device mode for programming.
- Modbus RTU interface for SCADA system.
Introduction
Exicom’s M1000-H controller platform covers all control and monitoring needs of small to big sized DC power systems with limited load and battery measurements. This hot plug-able controller boasts 65K colour screen for display, with amazingly simple & easy user interface, web pages and has full host of remote monitoring features. The controller along with its backplane is a fully functional controller and does not need additional slave cards in most of the cases, which make it a compact solution for space demanding applications
Key Features
High resolution color display and easy to use navigation
Hot plug in for easy maintenance
Ethernet for local or remote monitoring via web browser and optional modem
Supports 10/100 Mbps Ethernet interface, web server, IPv4 / IPv6, DHCP and SNMP Agent
2,000 event logs and energy logs
Configurable alarm grouping, PFC mapping and alarms names
Android based mobile application for system status, logs & event download and software upgrade
USB interface for configuration file update and log download
