MHA Infotech SDN BHDGrid-Genset Hybrid System
Key Technical Specification
- Input Connection:
- 3/2/1 Line +Neutral Earth
- Input Voltage:
- 1X230/2X230/3X230 (VRMS) AC (L-N)
- AC Input Voltage: 85 to 300Vac
- DC Output Voltage: 42V to 58Vdc
- Power Rating: up to 27KW
- System Efficiency: 95%(Rectifier Level)
- LVD: Battery/Individual Load Paths
- Battery Path Protection:
- Fuse/Circuit Breaker
- Surge Protection:
- Type 2 (class C) at System Level
- Automation:
- Available (DG, Mains, Battery Bank and Solar)
- Energy Metering:
- Grid Kwh, Genset Kwh, Battery Kwh, Individual Loads Kwh
- Best Phase Selection:
- Optional best phase selection for Aircon
- SVR:
- Optional 8Kva or 15 kVa isolated/Non isolated SVR
- Mounting: Floor Mount
- Controller: M-1000
- Rectifier Module:
- Serenity (3000W) /Quantum (3000W)
Introduction

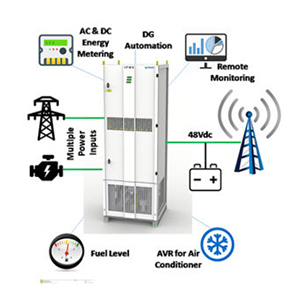

Exicom’s hybrid solutions provide power to the telecom site with combination of AC Grid, DG Genset and are ideal for sites with poor grid or no grid availability. The system includes an automatic transfer switch (ATS), optional best phase selection, rectifiers, AC & DC distribution for one or multiple operators, and load & battery connections. Depending on the power, backup and battery life requirements, the system can be expanded with additional battery cabinets. Exicom’s M1000 controller does entire energy and site infrastructure management and system supervision. Host of customizations are available to optimize automatic Genset operation as per customers’ requirements. Optional line conditioning Unit is provided for providing power to air conditioner in a telecom shelter. These systems are available in both indoor and outdoor configurations. With deployment of over 15,000 units in field, Exicom’s Hybrid Power Systems have proven to be energy-efficient and OPEX-optimized solution for ensuring lower CO2 emissions.
Key Features
Ideal for shared sites with multiple power inputs such as grid, DG genset and battery
Advanced M1000 controller platform for site infrastructure monitoring and control
High efficiency rectifiers for energy savings and optimized cost of ownership
Wide Operating temperature range from -40 °C to +75 °C
Supports multiple load disconnects (up to 4) enabling optimization of battery capacity
ECO Mode function for rectifier enabling significant energy savings even at low loads
Advanced AC and DC energy metering options
DG Genset automation with advanced settable logic for optimized performance and operations
Optional Line Conditioning Unit (output 220V +/- 1%) for feeding power to air conditioner in an indoor site
Remote Access – Monitoring through web browser, TCP/IP, & SNMP as standard feature and optional Modem
Advanced Battery support with built in support for Li-ion charge profiles
